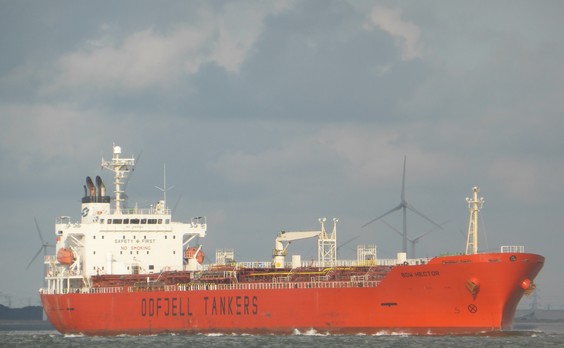

Bow Hector
| IMO number | 9363493 |
|---|---|
| Year built | 2009 |
| Builder | Shin Kurushima Dockyard Co. Ltd., Japan |
| Vessel name | Bow Hector |
| Flag | Norway |
| Class | Japan 30-36 |
| Number of Tanks | 16 |
| Length Over All (LOA) | 174.39 m |
| Parallel Body Length (PBL) - Loaded condition | 75.588 m |
| Parallel Body Length (PBL) - Ballast condition | 68.271 m |
| Most Extreme Breadth (BEAM) | 27.73 m |
| Draft at Deadweight Summer | 11.02 m |
| Keel to Top of Mast (KTM) | 42.95 m |
| Summer DWT | 33 694 mt |
| Light Ship Weight | 8 077 mt |
| Tonnes per cm (TPC) | 41.74 mt |
| Summer Waterline to Manifold | 8.18 m |
| Normal Ballast Waterline to Manifold | 12.37 m |
| Rail to Manifold | 3.45 m |
| Bow to Center of Manifold (BCM) | 89.59 m |
| Deck Crane Maximum Outreach | 4.15 m |
| International Tonnage Gross | 20 145 mt |
| International Tonnage Net | 9 154 mt |
| Suez Canal Tonnage Gross | 21 400 mt |
| Suez Canal Tonnage Net | 18 992 mt |
| Panama Canal Tonnage Net | 16 818 mt |
| SPM as per OCIMF | Yes |
| Contact | ops.bow.hector@odfjell.com |
| Tank Name | 98 Percent Volume | Tank Lining | IMO Tank Type |
|---|---|---|---|
| 1CP | 1715.49 | StainlessSteel | Type 2 |
| 1CS | 1715.18 | StainlessSteel | Type 2 |
| 2CP | 2282.74 | StainlessSteel | Type 2 |
| 2CS | 2286.89 | StainlessSteel | Type 2 |
| 3CP | 2360.55 | StainlessSteel | Type 2 |
| 3CS | 2362.89 | StainlessSteel | Type 2 |
| 4CP | 2844.18 | StainlessSteel | Type 2 |
| 4CS | 2844.54 | StainlessSteel | Type 2 |
| 5CP | 2844.72 | StainlessSteel | Type 2 |
| 5CS | 2843.60 | StainlessSteel | Type 2 |
| 6CP | 2838.38 | StainlessSteel | Type 2 |
| 6CS | 2837.56 | StainlessSteel | Type 2 |
| 7CP | 2860.08 | StainlessSteel | Type 2 |
| 7CS | 2848.18 | StainlessSteel | Type 2 |
| 8CP | 572.35 | StainlessSteel | Type 2 |
| 8CS | 581.30 | StainlessSteel | Type 2 |
