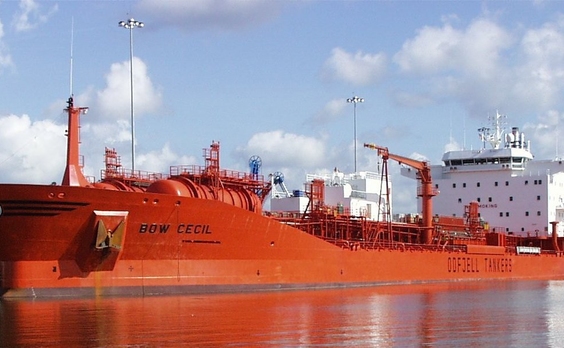

Bow Cecil
| IMO number | 9143219 |
|---|---|
| Year built | 1998 |
| Builder | Kværner Florø AS, Norway |
| Vessel name | Bow Cecil |
| Flag | Norway |
| Class | Kværner |
| Number of Tanks | 47 |
| Length Over All (LOA) | 183.1 m |
| Parallel Body Length (PBL) - Loaded condition | 77.6 m |
| Parallel Body Length (PBL) - Ballast condition | 68.5 m |
| Most Extreme Breadth (BEAM) | 32.2 m |
| Draft at Deadweight Summer | 10.72 m |
| Keel to Top of Mast (KTM) | 43.36 m |
| Summer DWT | 37 369 mt |
| Light Ship Weight | 11 216 mt |
| Tonnes per cm (TPC) | 50.5 mt |
| Summer Waterline to Manifold | 6.12 m |
| Normal Ballast Waterline to Manifold | 9.8 m |
| Rail to Manifold | 4.5 m |
| Bow to Center of Manifold (BCM) | 95.77 m |
| Deck Crane Maximum Outreach | 16 m |
| International Tonnage Gross | 23 230 mt |
| International Tonnage Net | 11 915 mt |
| Suez Canal Tonnage Gross | 23 386 mt |
| Suez Canal Tonnage Net | 20 699 mt |
| Panama Canal Tonnage Net | 19 353 mt |
| SPM as per OCIMF | No |
| Contact | ops.bow.cecil@odfjell.com |
| Tank Name | 98 Percent Volume | Tank Lining | IMO Tank Type |
|---|---|---|---|
| 10CP | 586.04 | StainlessSteel | Type 2 |
| 10CS | 586.04 | StainlessSteel | Type 2 |
| 10WP | 605.64 | StainlessSteel | Type 2 |
| 10WS | 605.64 | StainlessSteel | Type 2 |
| 11WP | 601.72 | StainlessSteel | Type 2 |
| 11WS | 601.72 | StainlessSteel | Type 2 |
| 12CP | 586.04 | StainlessSteel | Type 2 |
| 12CS | 586.04 | StainlessSteel | Type 2 |
| 4WP | 580.16 | StainlessSteel | Type 2 |
| 4WS | 580.16 | StainlessSteel | Type 2 |
| 5C | 1733.62 | StainlessSteel | Type 2 |
| 6C | 2372.58 | StainlessSteel | Type 2 |
| 6WP | 1136.80 | StainlessSteel | Type 2 |
| 6WS | 1136.80 | StainlessSteel | Type 2 |
| 7CP | 539.98 | StainlessSteel | Type 2 |
| 7CS | 539.98 | StainlessSteel | Type 2 |
| 7WP | 553.70 | StainlessSteel | Type 2 |
| 7WS | 553.70 | StainlessSteel | Type 2 |
| 5WP | 833.00 | StainlessSteel | Type 2 |
| 5WS | 833.00 | StainlessSteel | Type 2 |
| 13WP | 861.42 | Zink | Type 2 |
| 13WS | 861.42 | Zink | Type 2 |
| 1CP | 1186.78 | Zink | Type 2 |
| 1CS | 1185.80 | Zink | Type 2 |
| 1DP | 152.88 | StainlessSteel | Type 2 |
| 1DS | 152.88 | StainlessSteel | Type 2 |
| 12WP | 563.50 | Zink | Type 2 |
| 12WS | 563.50 | Zink | Type 2 |
| 13C | 2319.66 | StainlessSteel | Type 2 |
| 11C | 1274.00 | StainlessSteel | Type 2 |
| 2C | 2561.72 | StainlessSteel | Type 2 |
| 2DP | 147.00 | StainlessSteel | Type 1 |
| 2DS | 147.00 | StainlessSteel | Type 1 |
| 2WP | 955.50 | Zink | Type 2 |
| 2WS | 955.50 | Zink | Type 2 |
| 3CP | 290.08 | StainlessSteel | Type 2 |
| 3CS | 290.08 | StainlessSteel | Type 2 |
| 3WP | 292.04 | StainlessSteel | Type 2 |
| 3WS | 292.04 | StainlessSteel | Type 2 |
| 4C | 1210.30 | StainlessSteel | Type 2 |
| 8C | 3057.60 | StainlessSteel | Type 2 |
| 8WP | 1470.00 | StainlessSteel | Type 2 |
| 8WS | 1470.00 | StainlessSteel | Type 2 |
| 9CP | 345.94 | StainlessSteel | Type 2 |
| 9CS | 345.94 | StainlessSteel | Type 2 |
| 9WP | 358.68 | StainlessSteel | Type 2 |
| 9WS | 358.68 | StainlessSteel | Type 2 |
